Equipment

Industry-Leading Equipment – And Plenty Of It

Roska PTS has some of the industry’s best well-testing equipment. Our fleet includes numerous modern and well-maintained high-pressure frac packages designed for testing, flowing back and cleaning up newly drilled or recompleted wells in the Montney, Deep Basin, Duvernay and other unconventional reservoirs.

Our high-pressure frac packages are typically made up of high-stage 2,000 psi separators, low-stage 100 psi storage tanks, 3” 10,000 psi ESD valves, junk-catchers, double-drop choke manifolds, flow lines, line heaters, flare stacks, restraint systems, office trailers and more. They are specifically engineered to operate safely with a smaller footprint on busy, complex, multi-well pads.

Roska’s large and diversified equipment inventory can support well over one-dozen simultaneous testing jobs. Along with our sophisticated safety system and comprehensive certifications, this makes Roska PTS fully suited to meeting the needs of the industry’s most discerning E&P companies.

Designed with Key Features For Today’s Wellsite Conditions and Customer Needs

Roska PTS’s well testing fleet can meet any need in the Western Canada Sedimentary Basin – and across Canada. We can handle the highest rates, pressures and specs, including high sand and H2S.

more

Our custom-designed frac separator packages are built to perform in an efficient, cost-effective manner, performing the critical well clean-up functions and acquiring reliable data without compromising quality or safety. They have been field-proven on numerous multi-well pad deployments.

Key attributes of our well-testing equipment:

  • Our 2,000 psi frac packages are geared towards the high-rate, high-pressure, multi-phase wells that most E&Ps are focusing on;
  • Our equipment is sour-rated;
  • Our ample fleet size – paired with our experienced supervisors and crews – can handle extended deployments on multi-well pads;
  • With more than 10 complete high-pressure frac packages plus a range of lower-spec equipment, our fleet is large and diverse enough to accommodate an expanding drilling program;
  • We can include a full engineering package of the well testing equipment to be used on your job, including stamped drawings, prepared by our company’s in-house engineering department. We are able to quickly generate detailed engineering tasks such as process simulations, equipment sizing, PSV sizing, shutdown keys, etc. We have extensive experience engineering all wellsite equipment, including early production facilities and complex plan sites;
  • Our packages easily integrate with Roska DBO’s Early Production Facility model to provide semi-automated and more cost-effective extended well tests;
  • Our well-testing equipment can also be integrated with additional gas processing equipment for a custom solution, like dehydration, compression, stabilization and more, such as a Roska DBO vapour recovery compressor unit (VRU) to achieve zero-emissions on trucked-out liquids production;
  • We also perform all sorts of service-related work for which well testing equipment’s portable and rugged nature, and Roska DBO’s operations focus, are well-suited: production work, pigging support, knockout tanks, blowdowns, etc.;
  • Our sophisticated electronic data acquisition system gathers the data, stores it on site and, where specified by the customer, transmits the data in real-time to the desired off-site location; and
  • We are based where the action is.

Equipment Mix – Overview

The Roska PTS well-testing equipment fleet is modern, recently built and/or recently upgraded/refurbished. Virtually every well testing job is unique, so we customize the deployed package to the customer’s precise needs. Please call us with the information on your well, and we will design a testing package that is exactly suited.

more

Roska PTS’s organic equipment lineup includes:

2,000 psi Horizontal Four-Phase Frac Separators
1,440 psi Horizontal Four-Phase Frac Separators
675 psi Frac Separator Packages
675 psi Horizontal Three-Phase Frac Separators – Portable
500 psi Frac Separator Packages
285 psi Hot Head Vertical 16 m3 Frac Separators
200 psi Frac Separator – Portable
200 psi Frac Separator Package
100 psi 71 m3 Pressurized Storage Tanks
2,000 psi Test Units
Portable Inline Units
3”, 10,000 psi Flowlines
3” 10,000 psi Double-Drop Choke Manifolds
2” 10,000 psi Double-Drop Choke Manifolds
3” 10,000 psi ESDs
3” 10,000 psi 3,000,000 btu/hr Line Heaters
4” 5,000 psi 3,000,000 btu/hr Line Heaters
3” 5,000 psi Line Heaters
2” 5,000 psi 1,000,000 btu/hr Line Heaters
4” 10,000 psi Debris Catchers
Portable 60’ Flare Stacks
8”/10”/12” x 80 to 220’ Engineered Flare Stacks
Circulating Pumps

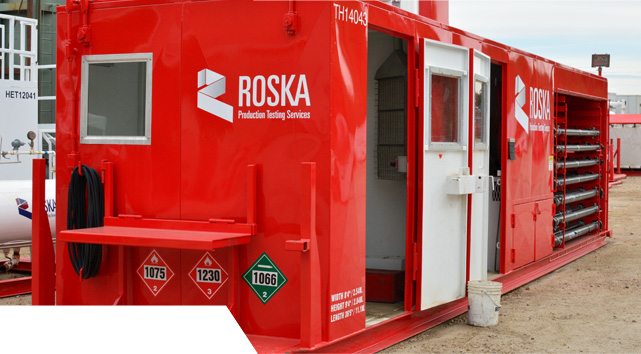

Portable and Skidded Office Trailers
Spare Valves and Parts Rated 2,000-10,000 psi

In addition, our parent company, Roska DBO Inc., has a broad lineup of production, operations and processing equipment available for rent, including rental pressure piping, chokes, RTUs, and turnkey solutions such as portable tank farms. Please click here for more information.

It’s About Overcoming Obstacles…

If you have an in-line well test and:

  • The pipeline cannot accept water…Roska has a solution;
  • The pipeline cannot accept condensate…Roska has a solution;

If your tank vents are exceeding flare limits…Roska has a solution;

more

If you are on a tight schedule…Roska a solution; and

If you need an engineering package… Roska has a solution.

How do we accomplish all this? Roska DBO (of which Roska PTS is a division) has been doing all of these things for many years. Roska DBO has complete design-build-operate capabilities, a huge range of well-site equipment and a great track record in the entire life-cycle of producing oil and gas wells.

That includes site-ready production packages and turnkey facilities, all available on a rental basis.

Equipment Fleet
Individual Descriptions and Key Specifications

Scroll for detailed information on our key equipment components and selected other items. Please note that this is a partial list. If there’s something you need but don’t see here, please call us!

2,000 psi Horizontal Four-Phase Frac Separator

These late-model, recently built designs are our largest units, made for the highest-rate, highest-pressure wells. Their additional weir achieves genuine four-phase separation (gas, oil/condensate, water and sand). The high pressure rating allows our testers to flow high-rate wells at lower velocity, improving separation and retention. The over-sized 6” inlets and outlets (4” is the industry standard) help eliminate erosion.

.
.
Specifications
Imperial Units
Metric Units
Maximum Allowable Working Pressure (limited to PRV)
2,000 psig
13,789 kPag
Maximum vessel gas flow rate*
Call for details
Maximum vessel liquid storage capacity
38 bbl
6.05 m3
Maximum vessel liquid rate operating at 50% capacity
Call for details
Maximum vessel operating temperature
200°F
96.3°C
Minimum vessel operating temperature
-50°F
-46°C
Unit Dimensions
Width
10ft. 3in
3.14 m
Height
8 ft. 6 in
2.62 m
Length
41 ft.
12.5 m

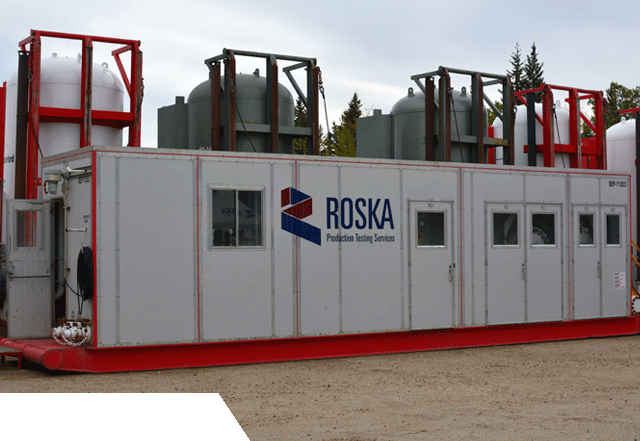

1,440 psi Horizontal Four-Phase Frac Separator

Like our 2,000 psi separators, our 1,440 psi units are manufactured with an additional weir to achieve genuine four-phase separation of gas, oil/condensate, water and solids. They are matched to the typical maximum operating pressures of pipelines in western Canada. They can handle the majority of jobs across western Canada, including most wells in the Montney, Duvernay, Deep Basin and other unconventional plays.

.
Specifications
Imperial Units
Metric Units
Maximum Allowable Working Pressure (limited to PRV)
1440 psig
9928 kPag
Maximum vessel gas flow rate*
Call for details
Pressure Relief Valve maximum flow rate
Call for details
Maximum vessel liquid storage capacity
58.5 bbl
9.26 m3
Maximum vessel liquid rate operating at 50% capacity
Call for details
Maximum vessel operating temperature
200°F
96.3°C
Minimum vessel operating temperature
-50°F
-46°C
Unit Dimensions
Width
10 ft.
3.05 m
Height
11ft.
3.35 m
Length
40 ft.
12.19 m

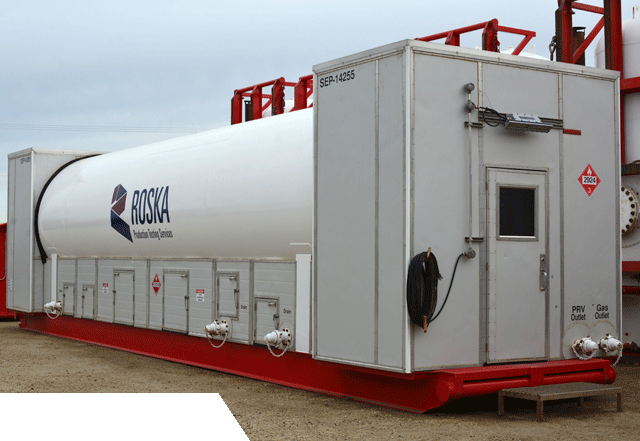

100 psi 71 m3 Pressurized Storage Tank

Offering the greatest volume in the well-testing sector, Roska’s 100 psi, 71 m3 storage tanks are a great piece of kit. Recently built, these extra-large tanks are well suited for storing water and condensate on large wells in the Montney and Duvernay. Often packaged with our 2,000 psi and 1,440 psi four-phase frac separators, they can also be deployed as part of an extended well test/early production facility. Roska’s pressurized storage tanks add hugely to process safety compared to traditional 400-barrel tanks, reducing numerous risks including dumping liquids at high pressure drop, flashing or expanding vapours and dumping sand.

.
Specifications
Imperial Units
Metric Units
Maximum Allowable Working Pressure (limited to PRV)
100 psig
689 kPag
Maximum vessel gas flow rate*
Call for details
Maximum vessel liquid storage capacity
447 bbl
71 m3
Maximum vessel operating temperature
400°F
204°C
Minimum vessel operating temperature
-50°F
-46°C
Unit Dimensions
Width
11 ft. 6 in
2.62 m
Height
12ft. 7 in
3.14 m
Length
53 ft.
14.6 m

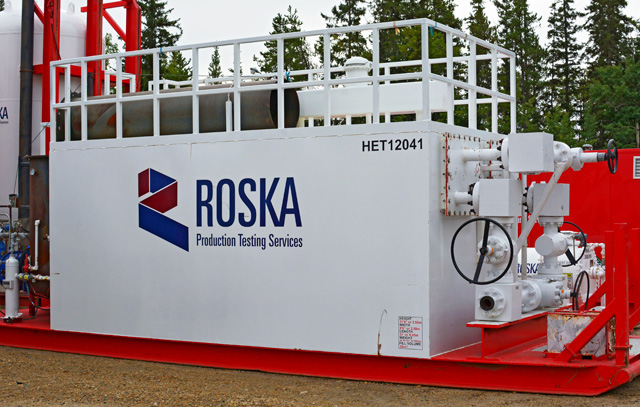

3” 10,000 psi 3,000,000 btu/hr Line Heater

Used for hydrate control on the highest-pressure-drop and/or sour applications, our line heaters include upstream and downstream passes and a choke. The uncommonly high pressure rating of this model allows our testers to prevent freeze-up in very high working pressure situations. All Roska PTS line heaters have CSA-B149 compliant fuel gas systems.

.
.
Specifications
Imperial Units
Metric Units
BTU Rating
3 MMBTU/hr
Primary Coil Size
4 in.
101.6 mm
Primary Coil Pressure Rating
5,000 psig
34.9 MPa*
Secondary Coil Size
4 in.
101.6 mm
Secondary Coil Pressure Rating
5,170 psig
36 MPa*
Minimum Rated Operating Temperature
-20°F
-29°C
Maximum Rated Operating Temperature
200°F
93.3°C
Burner
Burner Fuel Type
Propane
Burner Consumption (est)
Call for details
Choke
Choke Type
Cameron
Choke Size
3 in.
76.2 mm
Main Unit Dimensions
Width
7 ft.
2.1 m
Height
8 ft.
2.4 m
Length
40.5 ft.
12.3 m

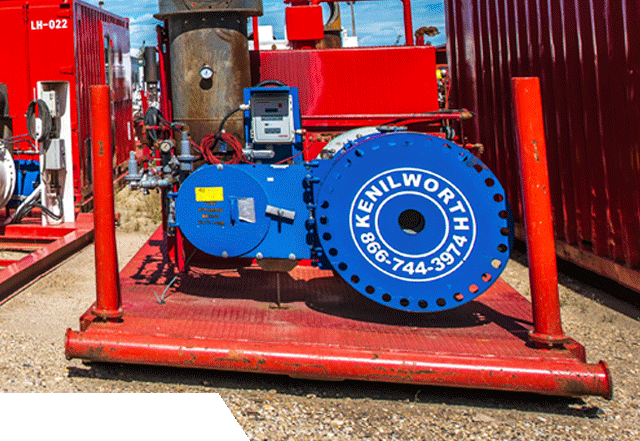

4” 5,000 psi 3,000,000 btu/hr Line Heater

Used to prevent freeze-up in high-pressure-drop and/or sour applications. Like all Roska PTS line heaters, these units have CSA-B149 compliant fuel gas systems and a choke. We also have many other sizes and pressure ratings available.

.
Specifications
Imperial Units
Metric Units
Primary coil pressure rating
5625 psi
38.78 MPa
Primary coil piping size
3 in.
76.2 mm
Secondary coil pressure rating
2395 psi
16.51 MPa
Secondary coil piping size
3 in.
76.2 mm
Maximum rated operating temperature
199°F
93°C
Minimum rated operating temperature
-20°F
-28.8°C
Burner Specifications
BTU Rating
1.5 MMBTU/hr
Burner Fuel Type
Propane or Methane
Burner Consumption*
Call for details
Unit Dimensions
Width
?? ft.
3.05 m
Height
?? ft.
2.44 m
Length
?? ft. 6 in
6.25 m

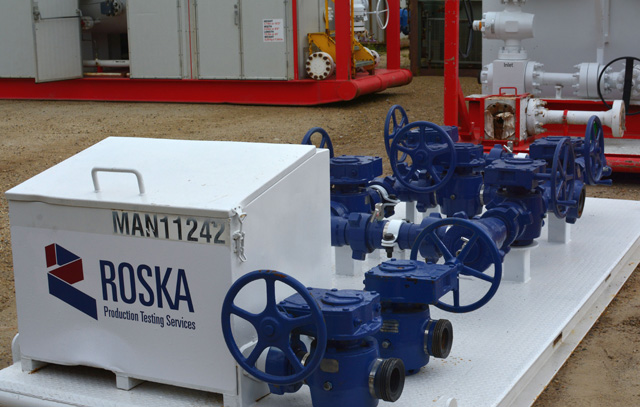

3” 10,000 psi Double-Drop Choke Manifold

Manifolds enable us to stage pressure drops to reduce velocities and erosion while providing the primary control point for the well being tested. They are of the highest quality, manufactured with high-end tungsten-carbide internals.

.
.
Specifications
Imperial Units
Metric Units
Service Type
Sweet or Sour*
Maximum Allowable Working Pressure
10,000 psi
68.95 MPa
Piping size / Union
3 in / 1502
76.2 mm / 1502
Stages
Double stage pressure drop
Valve Type
Plug Valve w/gear assembly
Maximum rated operating temperature*
400°F
204°C
Minimum rated operating temperature
-20°F
-28.8°C

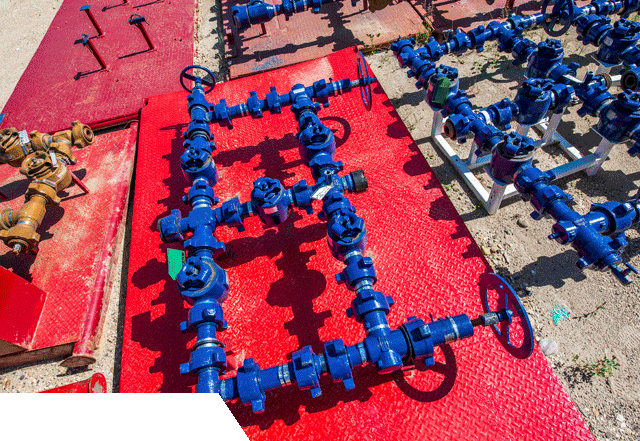

2” 10,000 psi Double-Drop Choke Manifold

Like our 3” units, our 2” choke manifolds are fabricated with tungsten-carbide internals for the highest quality and durability. Double-drop chokes enable us to stage pressure drops for the particular well test, reducing erosion by lowering velocities.

.
Specifications
Imperial Units
Metric Units
Service Type
Sweet or Sour*
Maximum Allowable Working Pressure
10,000 psi
68.95 MPa
Piping size / Union
2 in / 1502
50.8 mm / 1502
Stages
Double stage pressure drop
Valve Type
Plug Valve
Maximum rated operating temperature*
400°F
204°C
Minimum rated operating temperature
-29°F
-20°C

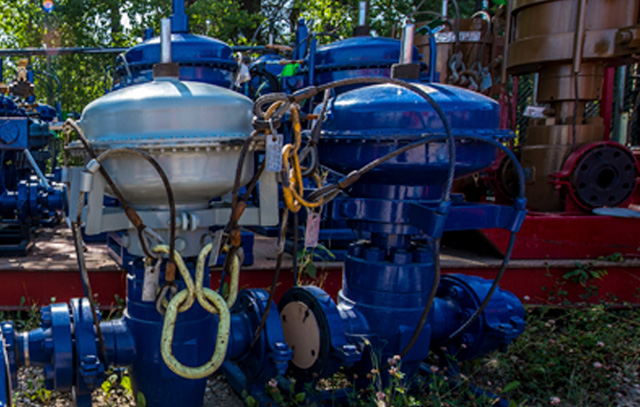

3” 10,000 psi ESD

The ESD is a standard item on all Roska PTS well testing packages. The ESD provides a fail-safe mechanism for control over the well in case of unforeseen or otherwise unmanageable problems during well testing. Our ESDs all include certified lifting slings for hoisting.

.
.
Specifications
Imperial Units
Metric Units
Size
3-1/16 in.
Maximum working pressure
10,000 psi
69 MPa
Test pressure
15,000 psi
103 MPa
Operating temperature range
–20°F to 250°F
–29°C to 121°C
Service conditions
H2S/CO2
ID (nominal bore)
3-1/16 in
77.79 mm
Upstream connection
3-in. Fig 1502 union female
Downstream connection
3-in. Fig 1502 union male

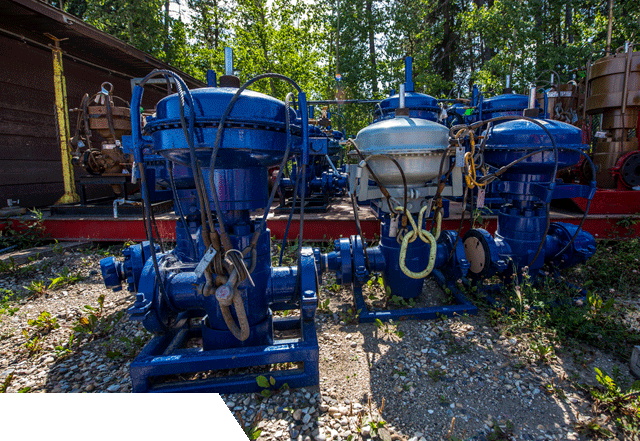

3” 15,000 psi ESD

The ESD is a standard item on all Roska PTS well testing packages. The ESD provides a fail-safe mechanism for control over the well in case of unforeseen or otherwise unmanageable problems during well testing. Our ESDs all include certified lifting slings for hoisting.

.
Specifications
Imperial Units
Metric Units
Size
3-1/16 in.
Maximum working pressure
15,000 psi
103 MPa
Test pressure
22,500 psi
155 MPa
Operating temperature range
–20°F to 250°F
–29°C to 121°C
Service conditions
H2S/CO2
ID (nominal bore)
3-1/16 in
77.79 mm
Upstream connection
3 1/16-in. API 16BX hub
Downstream connection
3 1/16-in. API 16BX hub

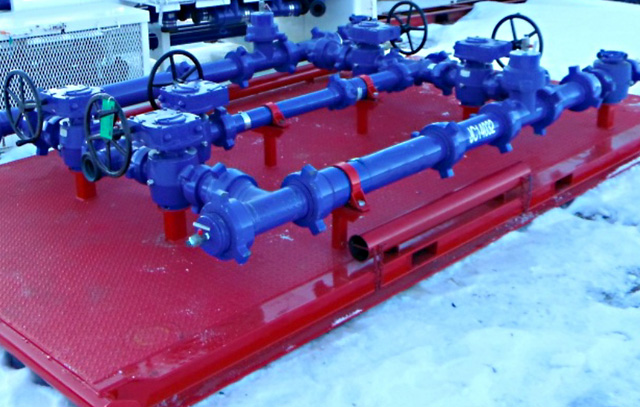

4” 10,000 psi Debris Catcher

Deployed where needed to recover cuttings from drilling and milling plugs or perf balls, preventing debris from travelling downstream and damaging equipment. Like everything in the Roska PTS inventory, this is modern, well-designed, premium equipment. Also available in a number of other sizes and pressure ratings.

.
.
Specifications
Imperial Units
Metric Units
Service Type
Sweet/Sour
Maximum Allowable Working Pressure
10,000 psi
68.95 MPa
Catcher piping size
4” ID 3.75 in
101.6 mm ID 95.25 mm
Valve Type
3 in 1502 Plug Valve
52.38 mm
Maximum rated operating temperature*
250°F
121°C
Minimum rated operating temperature
-50°F
-45.5°C
Unit Dimensions
Width
8 ft.
2.44 m
Height
2 ft. 6 in
0.762 m
Length
15 ft.
4.6 m

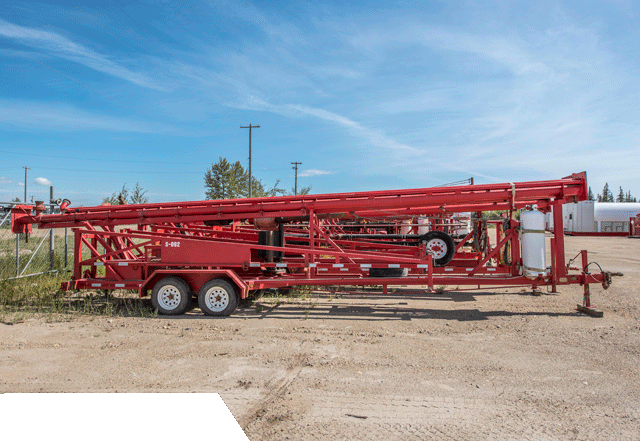

Portable 60’ Flare Stack

Quick, nimble, easy to tow and fast to set up without need for a crane, the speed and mobility of these units make them cost-effective as well. A portable flare stack is the standard solution on most lower-rate wells and single-vessel scenarios. We also have a range of larger flare stacks available.

.
Specifications
Imperial Units
Metric Units
Minimum Height
40 ft.
12.19 m
Maximum Height
60 ft.
18.28 m
Maximum flow rate
Call for details
Diameter of main line
4 in
101.6 mm
Diameter of auxiliary line
3 in
76.2 mm
Unit Dimensions – Transport
Width
6 ft. 7 in
2.01 m
Height
7 ft. 7 in
2.32 m
Length
33 ft.
10.05 m
*Certain models have integrated pipe racks

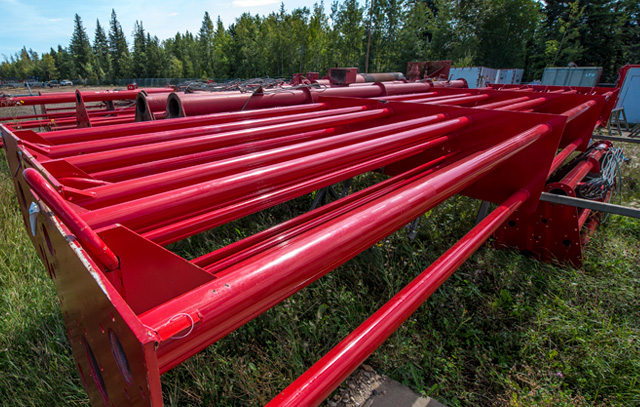

8”/10”/12” x 80’ to 220’ Engineered Flare Stack

With 80-120’ stacks now typical for Montney well tests, these engineered units are go-to items for many deployments. Their special multi-port design enables rigging multiple vessels to a single stack. Our large flare stacks are designed to achieve the wider dispersion required for high-rate, high-pressure and/or more sour applications, accommodating terrain and environmental considerations.

.
.

Structurally engineered to 220’ (67m) for wind and stress load with engineered pick points

Available from 80’ (24m) – 220’ (67m) with 8” (203mm), 10” (254mm) or 12” (305mm) tip

Skid and trailer mounted for mobilization and loading efficiency

Specifications
Imperial Units
Metric Units
Minimum Height
8 ft.
24.4 m
Maximum Height
220 ft.
 67.1 m
Maximum flow rate
Call for details
Diameter of main line
8/10/12 in
219/273/324 m
Diameter of auxiliary lines
4 in
114 mm
Unit Dimensions (ea segment)
Width
36 in
0.914 m
Height
20 ft.
6.10 m
Length
36 in
0.914 m
Different tip sizes available

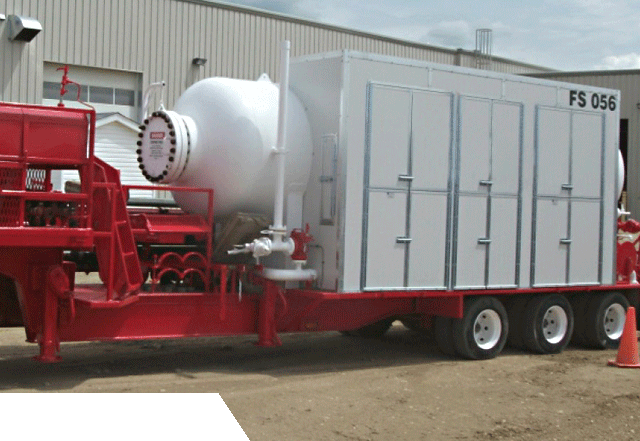

675 psi Horizontal Portable Three-Phase Frac Separator

Built for quick and easy rig-ups, these systems come to your well site complete in one load plus a flare stack. These sour-service, full-spec units can be used in a variety of ways, including for production work, frac flowback, quick well tests or bringing a well back on-stream. The higher-pressure vessel contributes to easy portability.

.
Specifications
Imperial Units
Metric Units
Maximum Allowable Working Pressure (limited to PRV)
675 psig
4,654 kPag
Maximum vessel gas flow rate*
Call for details
Maximum vessel liquid storage capacity
76.9 bbl
12.23 m3
Maximum vessel liquid rate operating at 50% capacity
Call for details
Maximum vessel operating temperature
200°F
93.3°C
Minimum vessel operating temperature
-50°F
-46°C
Unit Dimensions
Width
8 ft. 6 in
2.62 m
Height
11ft. 6 in
3.50 m
Length
37 ft. 6 in
11.43 m

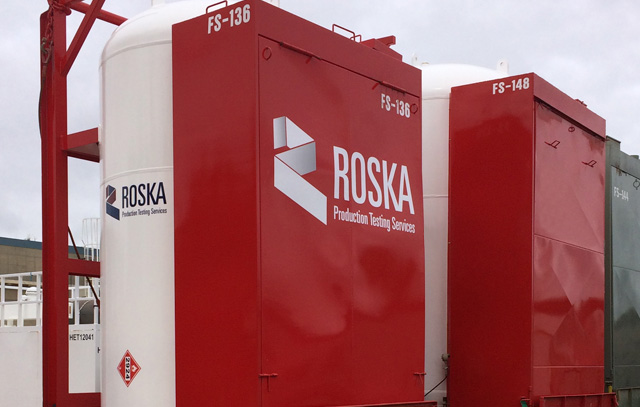

285 psi Vertical Three-Phase Frac Separator

These “hot-head” units include a built-in heater, making them great for winter operations. They can be used as test vessels in lower-pressure scenarios in numerous plays such as the Cardium, and are very useful as blowdown vessels or knock-out tanks.

.
.
Specifications
Imperial Units
Metric Units
Maximum Allowable Working Pressure (limited to PSV set pressure)
285 psig
1,965 kPa
Liquid storage capacity
134 bbl
21.3 m3
Maximum liquid rate (operating half full)
Call for details
Maximum rated operating temperature for vessel
100°F
37.8°C
Minimum vessel operating temperature
-50°F
-46°C
Unit Dimensions
Width
10 ft.
3.1 m
Height
20 ft.
6.1 m
Length
11 ft.
3.4 m
